How To Measure for Timber Gates

How to measure your timber gate before ordering

Use this guide to check the opening, ground clearance and side clearances for your timber gate. The dimensions below assume level ground and a gate swing of up to 110 degrees. If your ground slopes, the opening is out of square, or you are unsure, contact us before ordering.

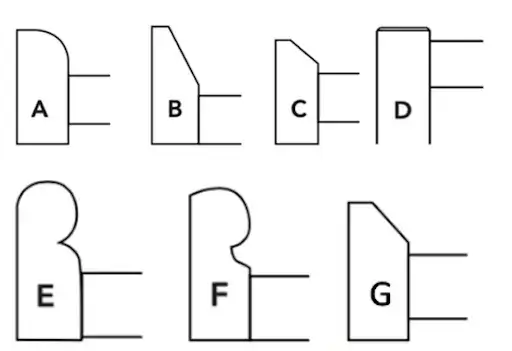

  • Gate horn decorative option (choose your profile)

    Gate Horn

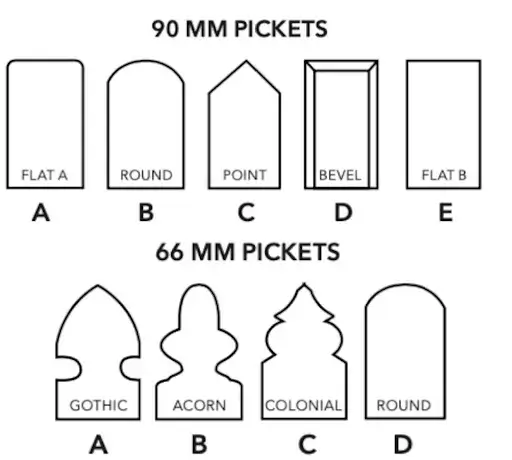

  • Picket head profile detail

    Picket Heads

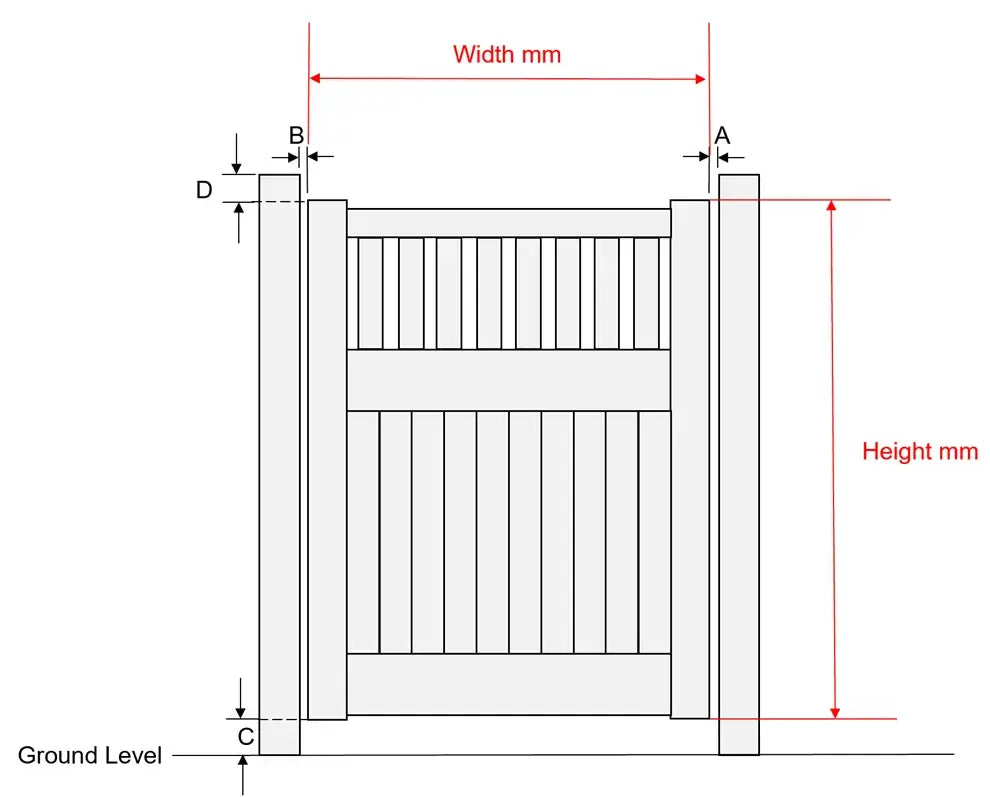

For Single & Pedestrian Gates

Notes: Assumes level ground over the swing of the gate (for the full opening to 110 degress) and along the line of the gate in the closed position

A - 10mm gap between gate and inside of post/wall or jamb

B - 10mm gap between gate and inside of post/ wall or jamb

C - 40mm gap between bottom of gate and ground (highest point)

D - 25mm between top of post (exc post head) and top of gate (inc. gate horn)

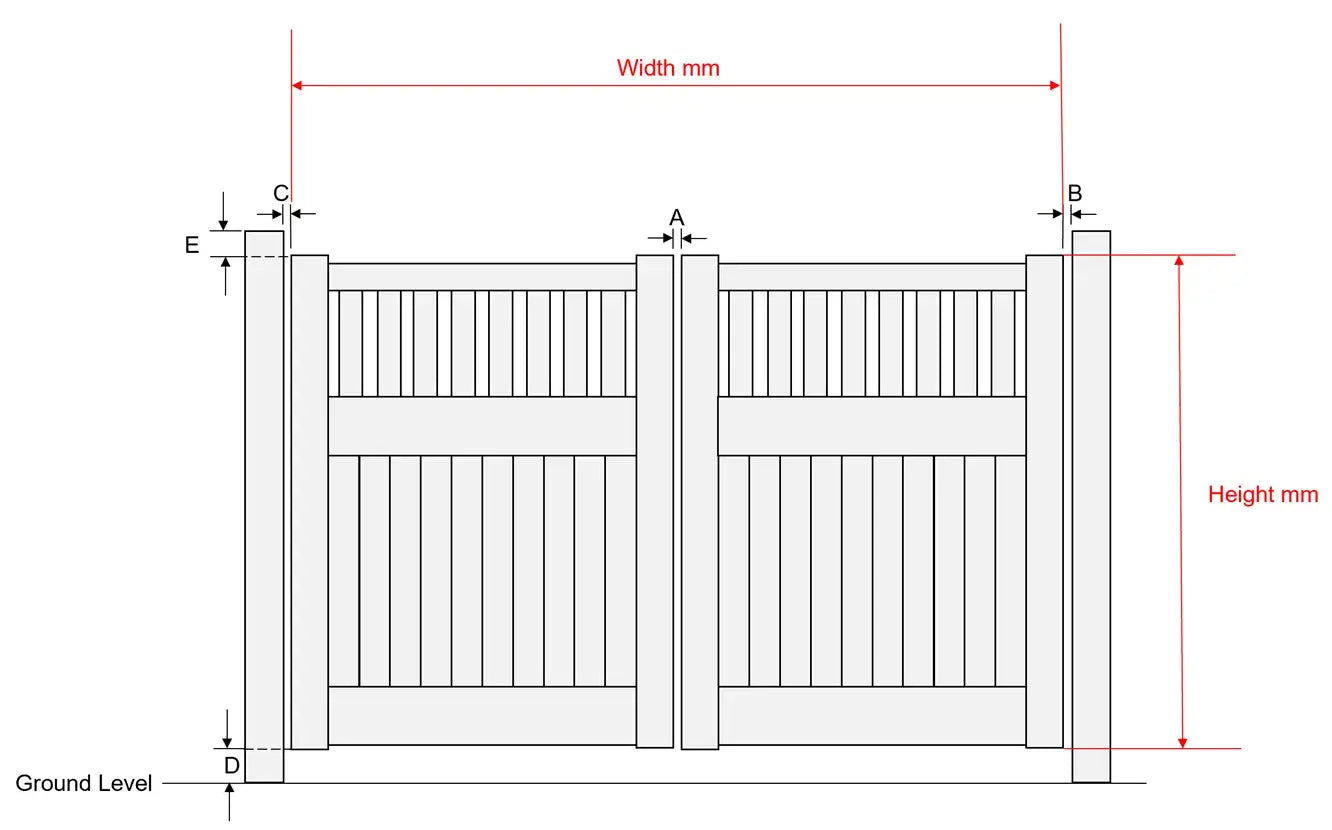

For Double & Driveway Gates

Notes: Assumes level ground over the swing of the gate (for the full opening to 110 degress) and along the line of the gate in the closed position

A - 20mm gap between gates (for double gates only)

B - 10mm gap between gate and inside of post/ wall or jamb

C - 10mm gap between gate and inside of post/ wall or jamb

D - 40mm gap between bottom of gate and ground (highest point)

E - 25mm between top of post (exc post head) and top of gate (inc. gate horn)

Ready to order your timber gate?

Once you have your measurements, choose your gate design and order online. For unusual openings or more complex driveway gates, you can send us your measurements and a few photos so we can help confirm the right size.

To do this simply send us a message via our contact page form and we'll respond with an email you can reply to.
